VS Series

PLAGATE System Hot Runner Forming Device

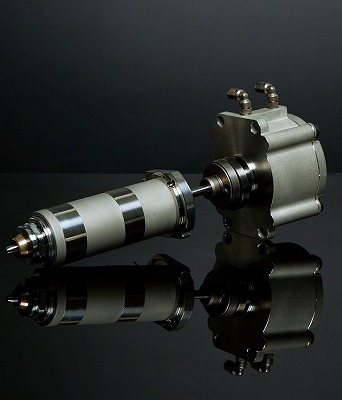

Pneumatic needle valve nozzle
VS080/VS063/VS025

Easy adjustment of welding lines and easy forming of combinations of large and small items

Pneumatic nozzle VS type can adjust the opening and closing time of each gate by using a timing controller. Diversified nozzle size and gate size can be applied to molded products in various fields, improving productivity.

Import case

Features of the VS series

POINT1: Simplification of mold processing

POINT2: Alternative gate closing methods

POINT3: Variety of nozzle sizes

POINT4: Available in hot half-mode

1. Simplification of mold processing

Cylinder voids do not require machining to tolerances and surface roughness.

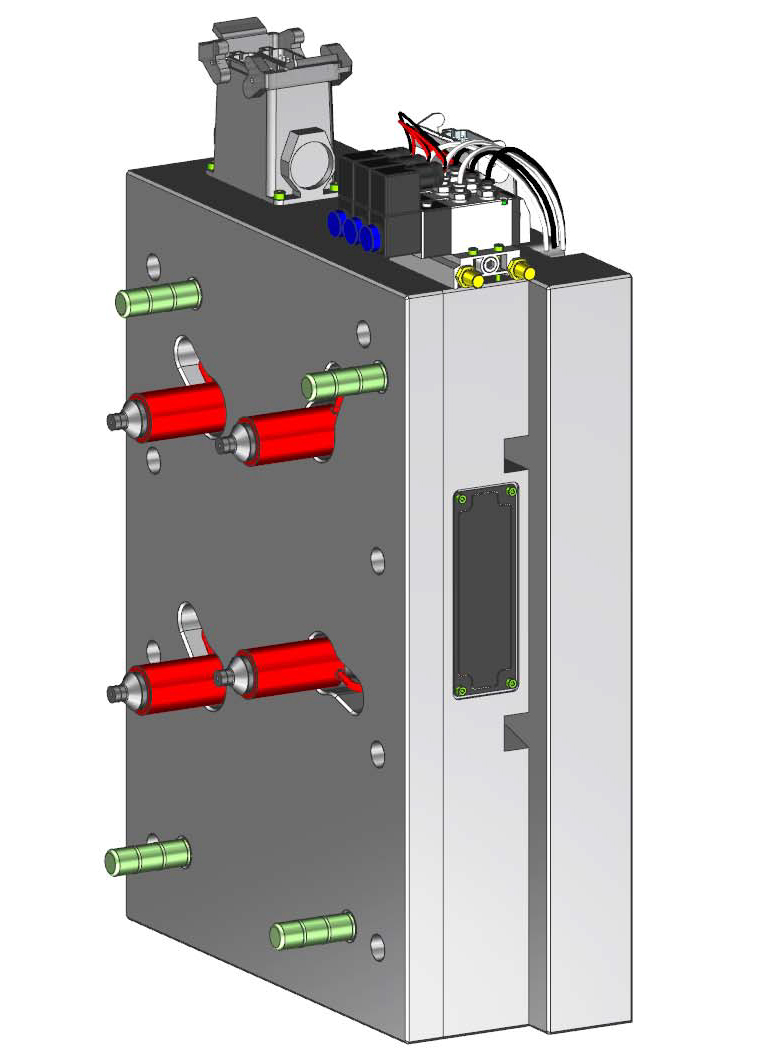

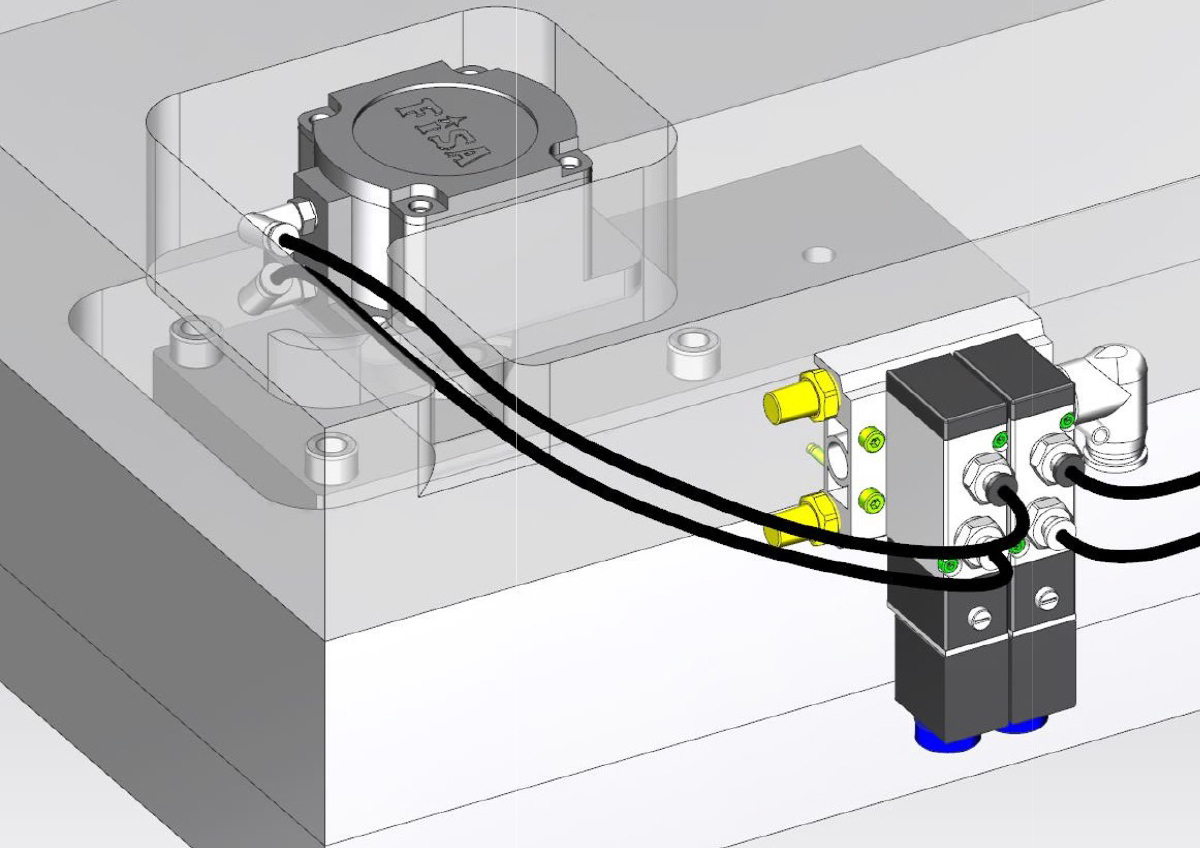

The air supply to the cylinder adopts the air pipe style, and it is not necessary to process the air hole from the side of the mold.
The mold processing is simplified, which can reduce the cost.

2. Alternative gate closing methods

There are two types of gate closing methods: tapered surface closing and straight surface closing, which can be selected according to your needs.

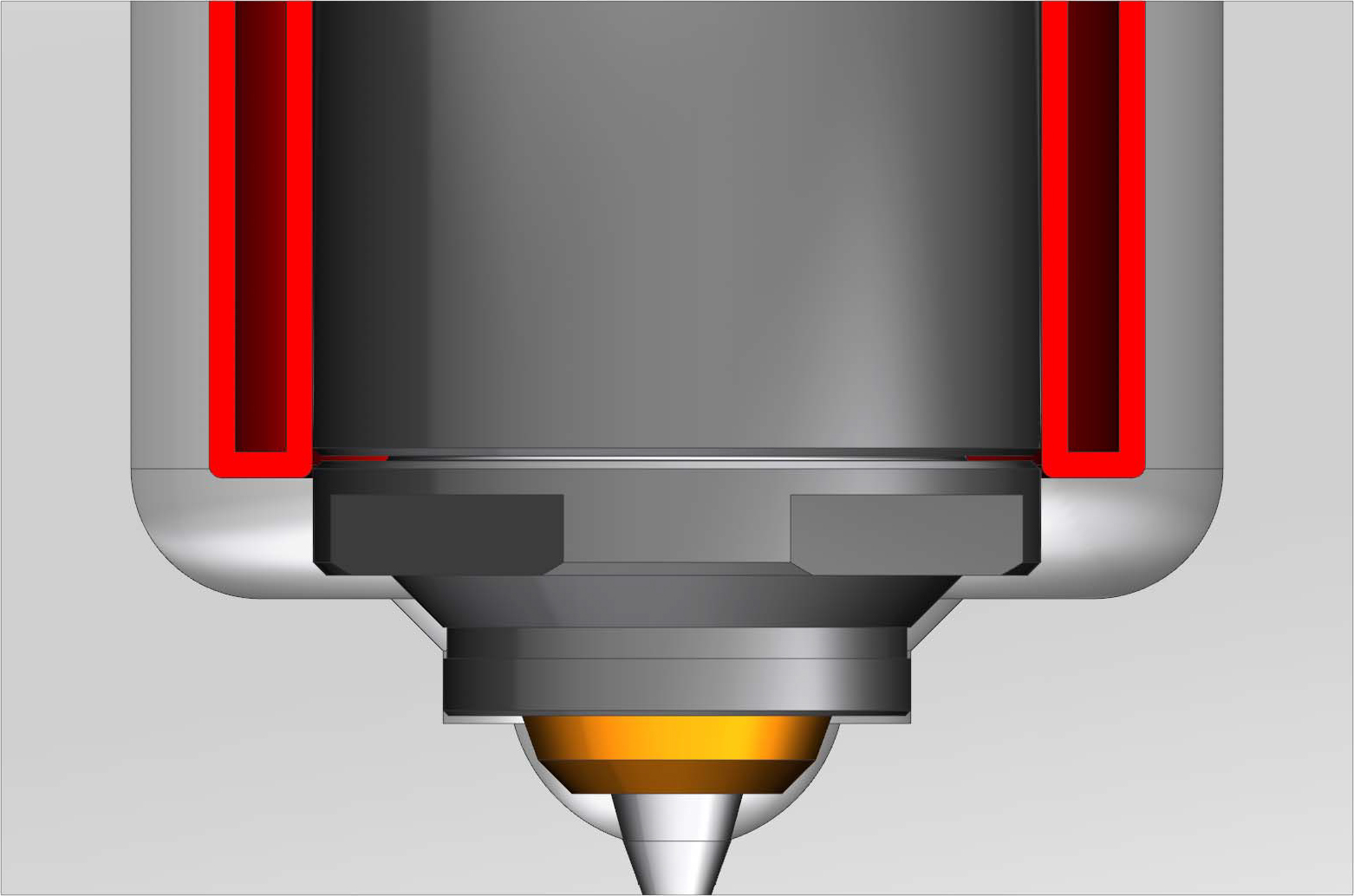

Cone closed

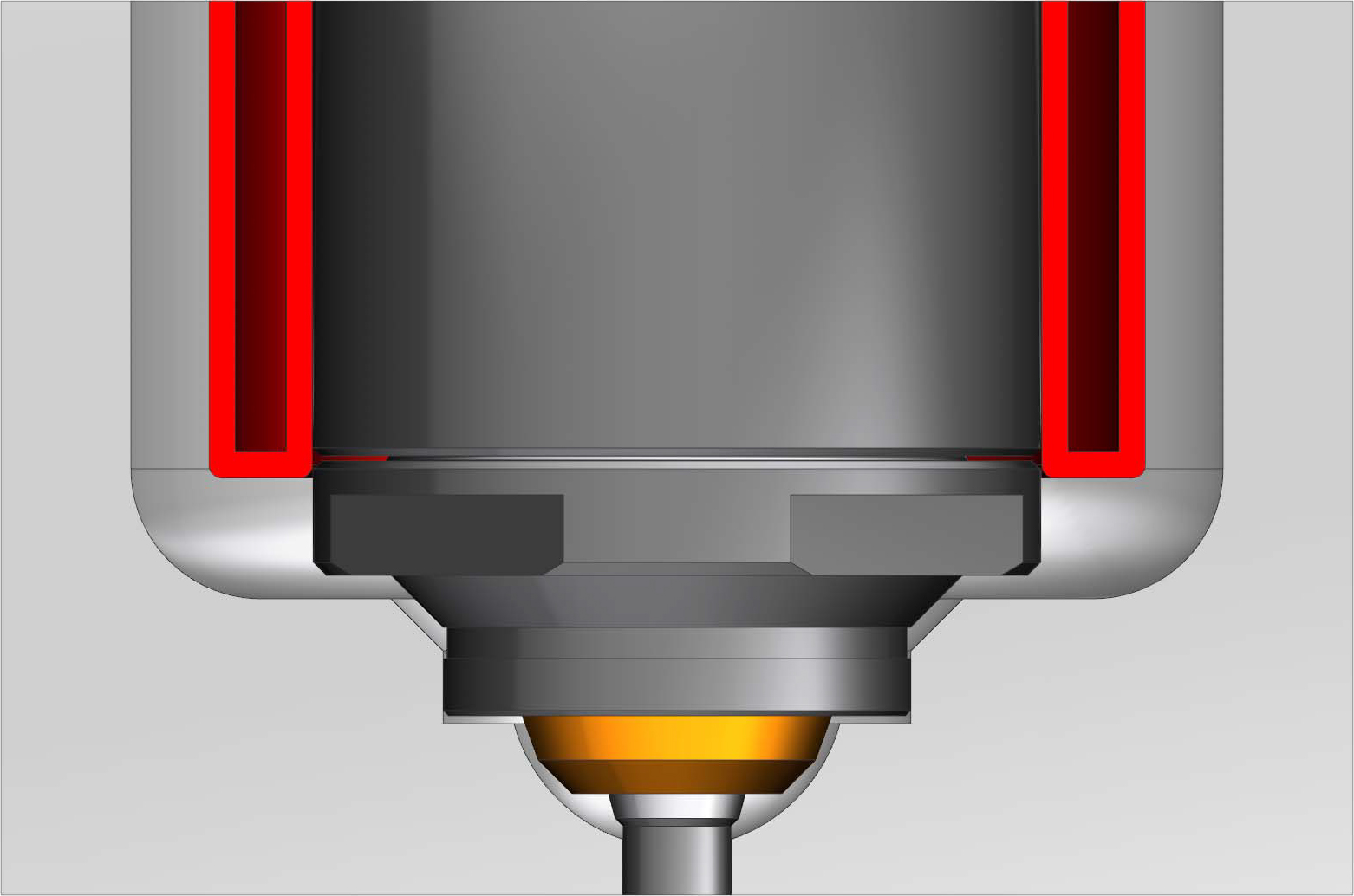

face off

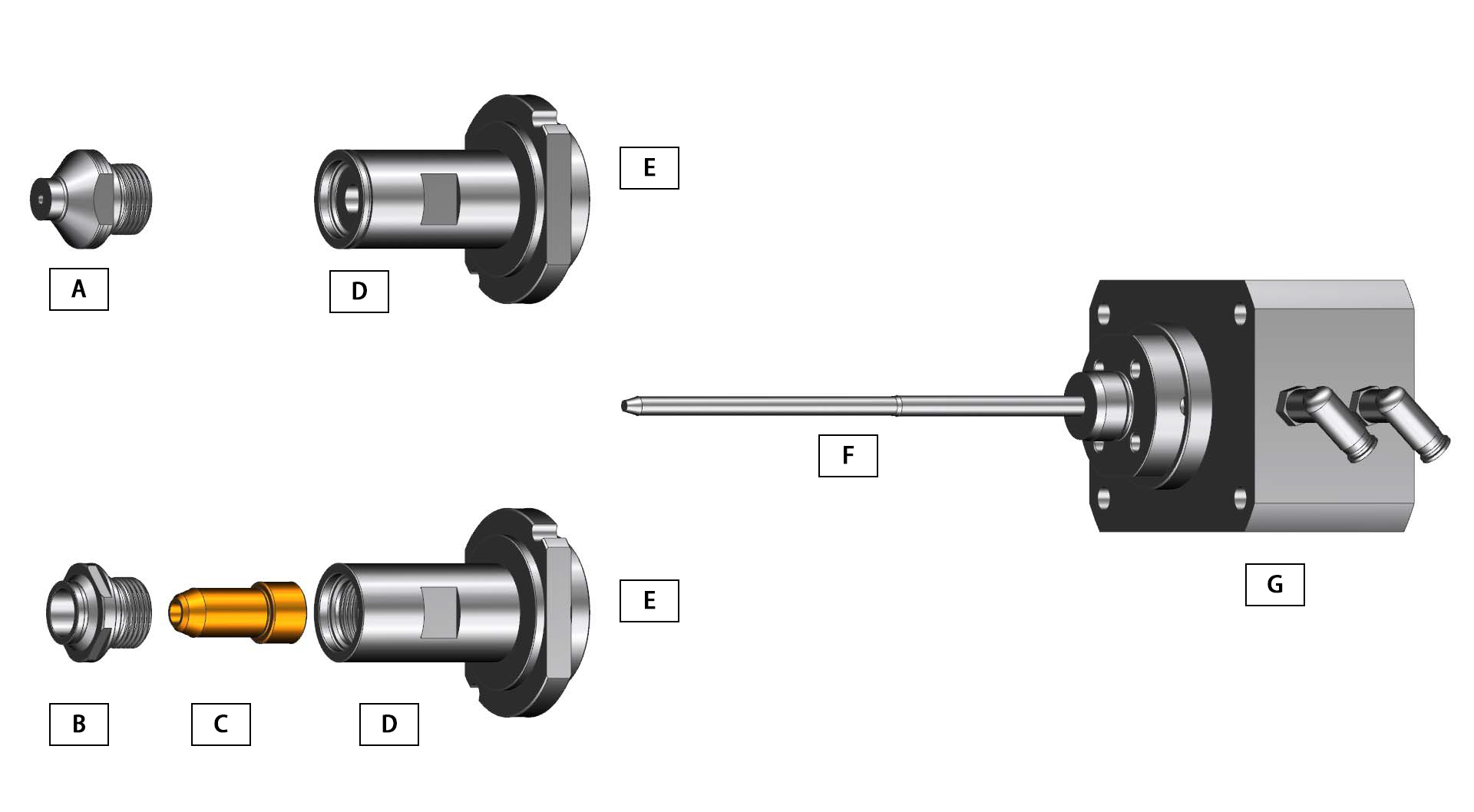

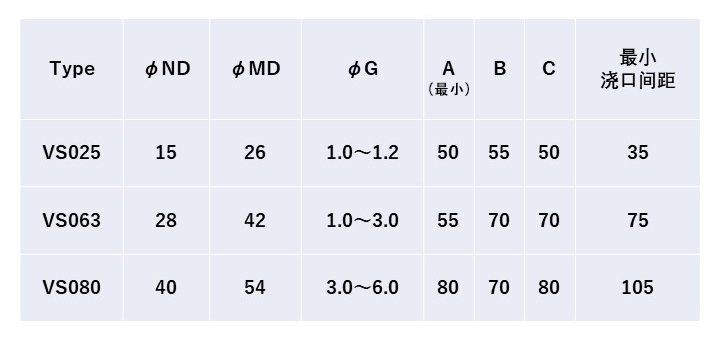

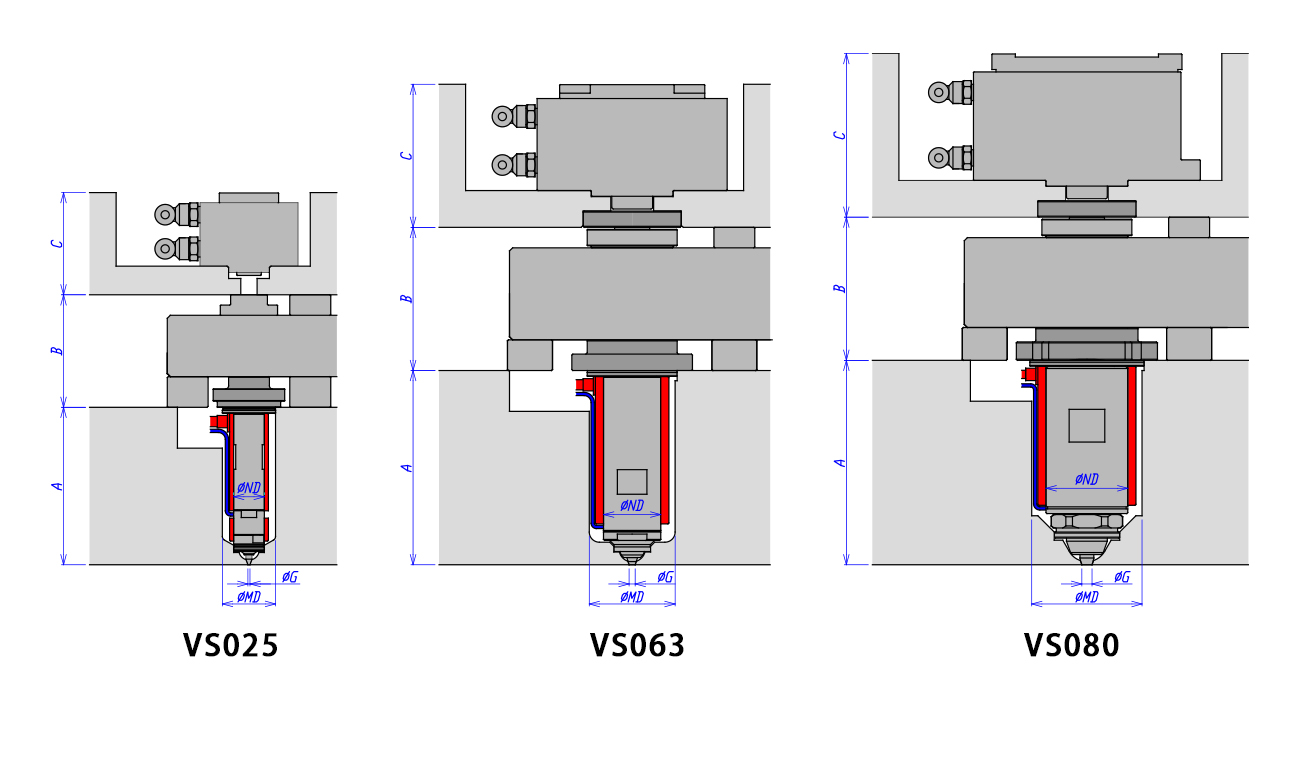

3. Various nozzle sizes

A wide variety of nozzle sizes are available, from large pieces to multiple pick-up products with small pitches, and nozzles suitable for molded products can be used
